200MP Series
The 200MP Series Relief Valves feature a compact, highly accurate design with zero leakage, tamper-proof adjustment, and 100% leak testing, offering dependable pressure and vent relief performance up to 200 PSI in brass, aluminum, and stainless steel configurations.
1/4″ MNPT x 1/4″ FNPT
Max Pressure: 200 PSI
Orifice Size: 0.190
Flow Coefficient cv: Consult Factory
Crack Pressures Available (PSI):
0.5-150

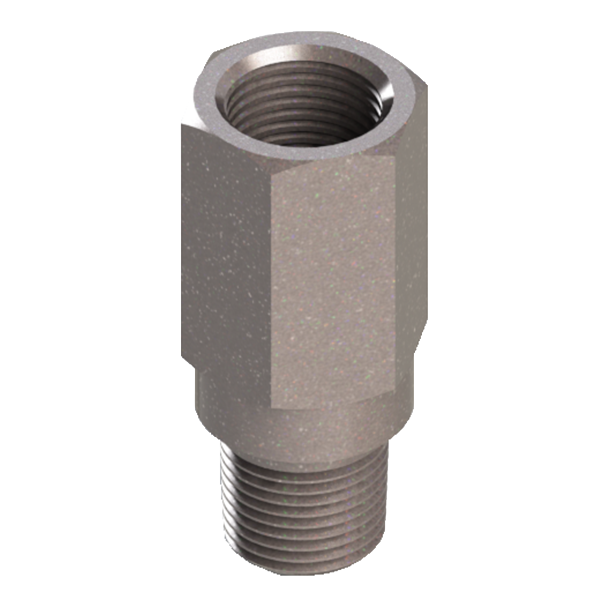

3/8″ MNPT x 3/8″ FNPT
Max Pressure: 200 PSI
Orifice Size: 0.277
Flow Coefficient cv: Consult Factory
Crack Pressures Available (PSI):
0.5-150
1/2″ MNPT x 1/2″ FNPT
Max Pressure: 200 PSI
Orifice Size: 0.350
Flow Coefficient cv: Consult Factory
Crack Pressures Available (PSI):
0.5-150

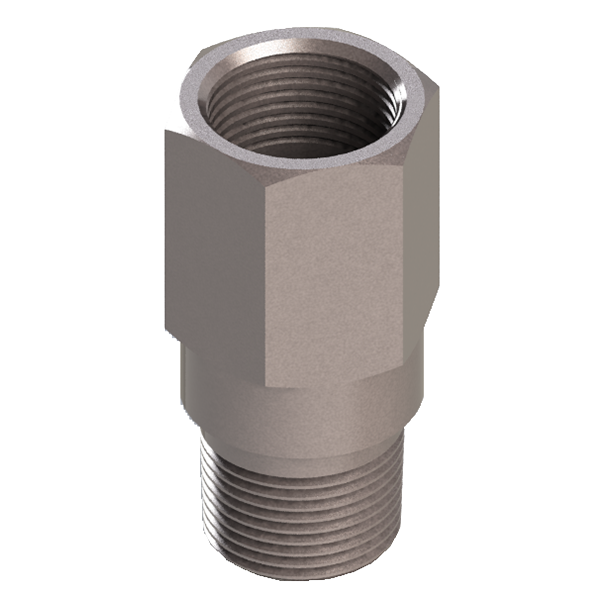

3/4″ MNPT x 3/4″ FNPT
Max Pressure: 200 PSI
Orifice Size: 0.420
Flow Coefficient cv: Consult Factory
Crack Pressures Available (PSI):
0.5-150

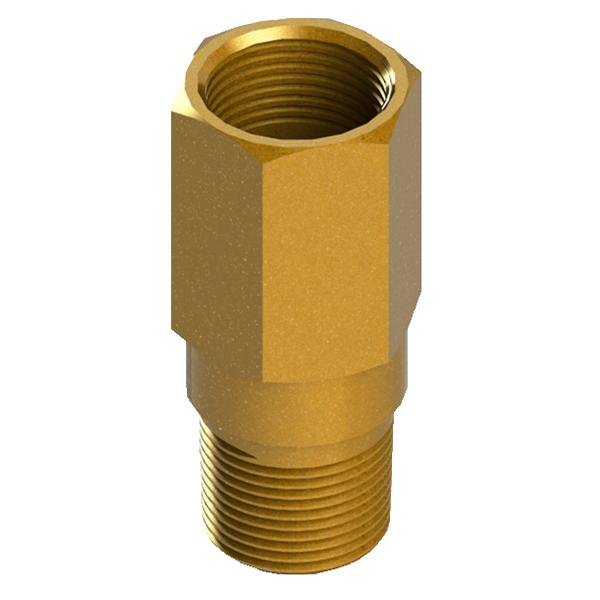

1″ MNPT x 1″ FNPT
Max Pressure: 200 PSI
Orifice Size: 0.510
Flow Coefficient cv: Consult Factory
Crack Pressures Available (PSI):
0.5-150

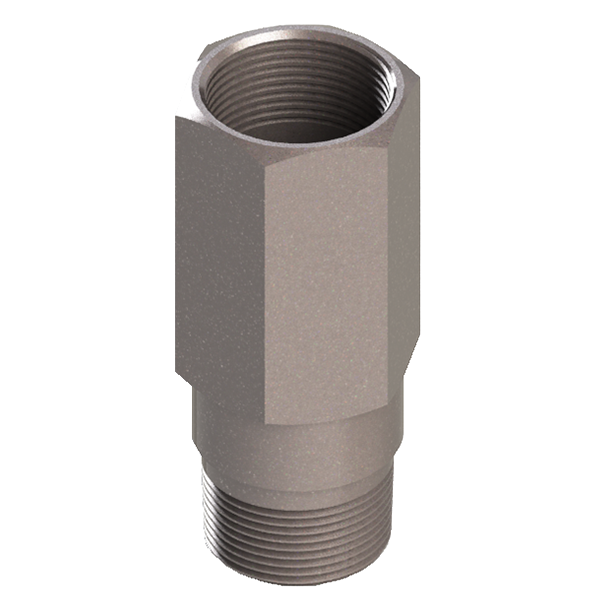

1 1/4″ MNPT x 1 1/4″ FNPT
Max Pressure: 200 PSI
Orifice Size: 0.625
Flow Coefficient cv: Consult Factory
Crack Pressures Available (PSI):
0.5-150
