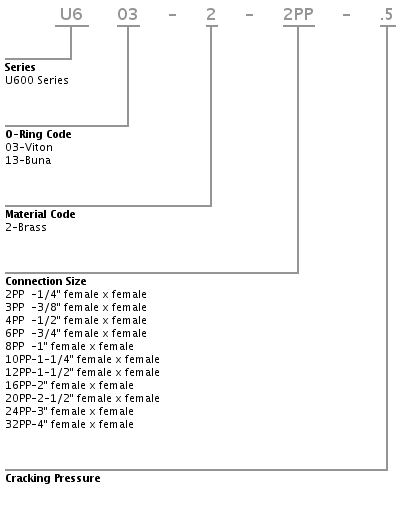

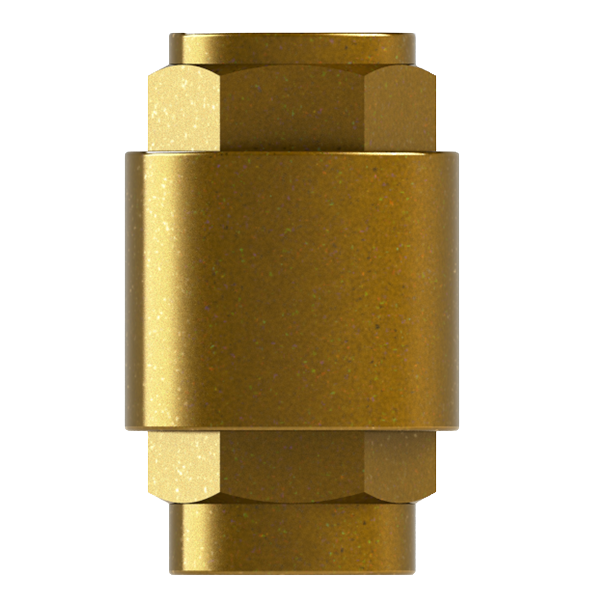

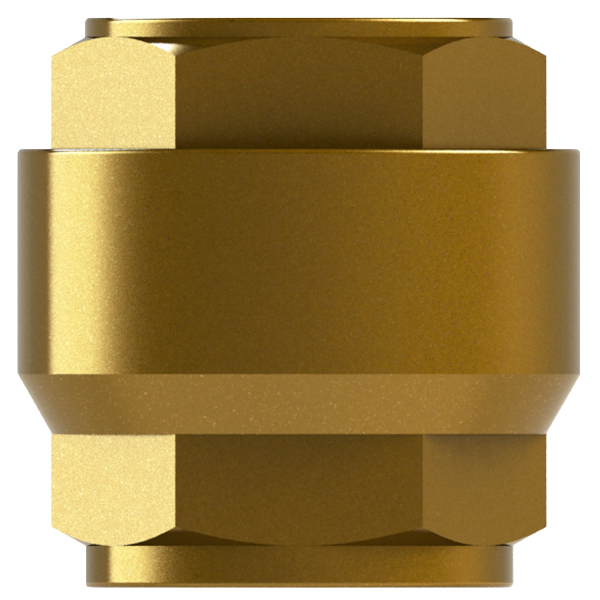

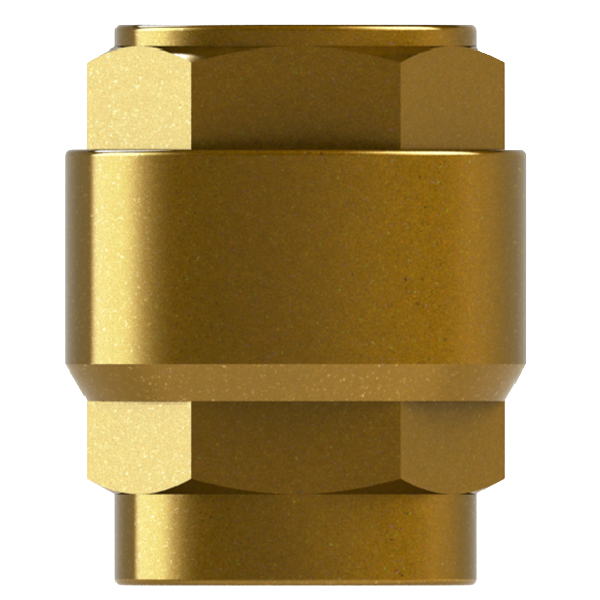

U600 Series
The U600 Series offers an economical, lead-free solution designed to meet ANSI/NSF 61 standards, delivering high flow performance with low cracking pressure for efficient operation.
1/4″ FNPT x 1/4″ FNPT
Max Pressure: 400 PSI
Orifice Size: 0.394
Flow Coefficient cv: 4.55
Crack Pressures Available (PSI): 0.5

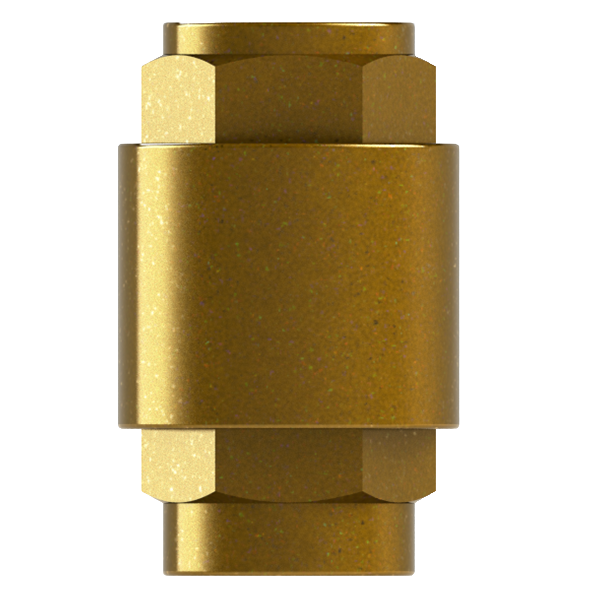

3/8″ FNPT x 3/8″ FNPT
Max Pressure: 400 PSI
Orifice Size: 0.394
Flow Coefficient cv: 4.55
Crack Pressures Available (PSI): 0.5

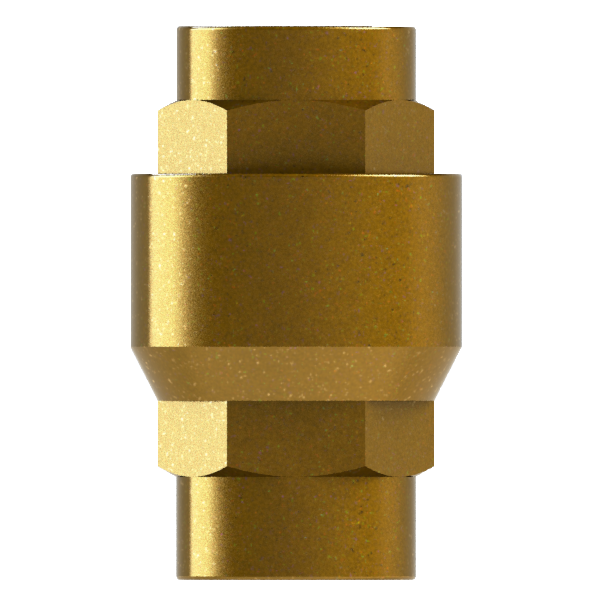

1/2″ FNPT x 1/2″ FNPT
Max Pressure: 400 PSI
Orifice Size: 0.590
Flow Coefficient cv: 6.07
Crack Pressures Available (PSI): 0.5

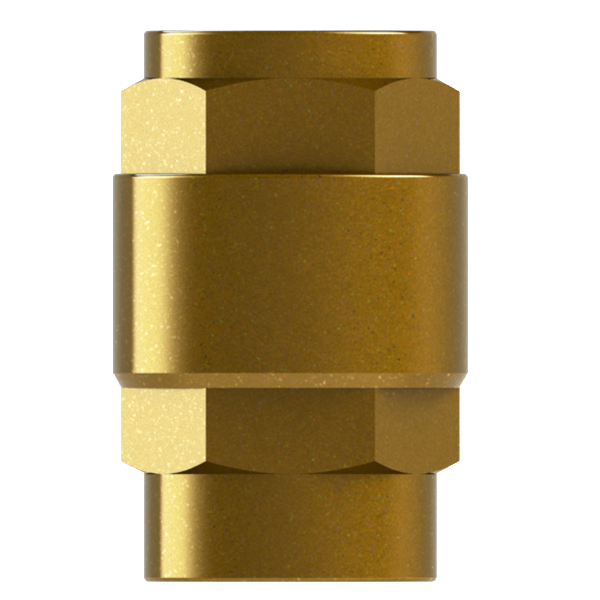

3/4″ FNPT x 3/4″ FNPT
Max Pressure: 400 PSI
Orifice Size: 0.780
Flow Coefficient cv: 10.97
Crack Pressures Available (PSI): 0.5

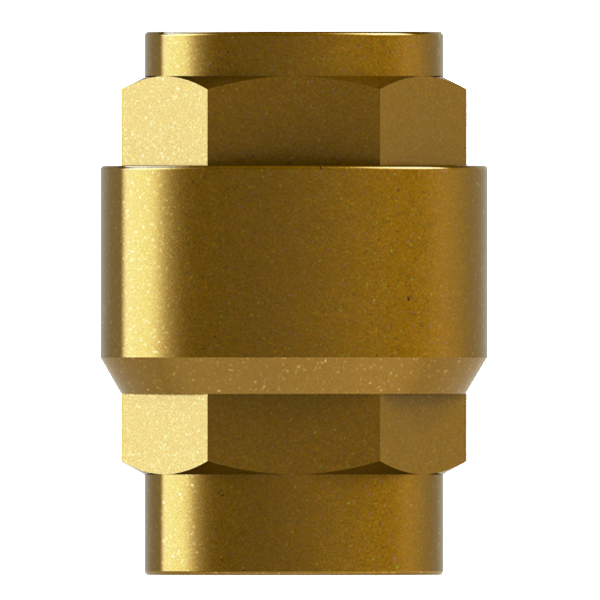

1″ FNPT x 1″ FNPT
Max Pressure: 400 PSI
Orifice Size: 0.990
Flow Coefficient cv: 16.92
Crack Pressures Available (PSI): 0.5
1 1/4″ FNPT x 1 1/4″ FNPT
Max Pressure: 400 PSI
Orifice Size: 1.3
Flow Coefficient cv: 27.42
Crack Pressures Available (PSI): 0.5

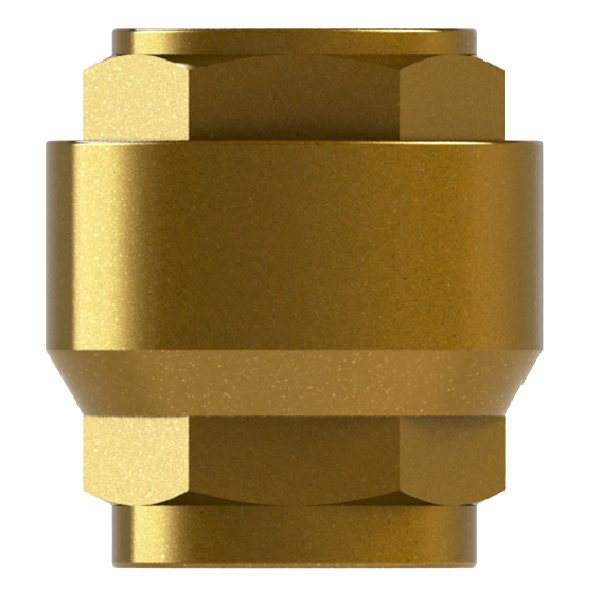

1 1/2″ FNPT x 1 1/2″ FNPT
Max Pressure: 400 PSI
Orifice Size: 1.55
Flow Coefficient cv: 39.09
Crack Pressures Available (PSI): 0.5

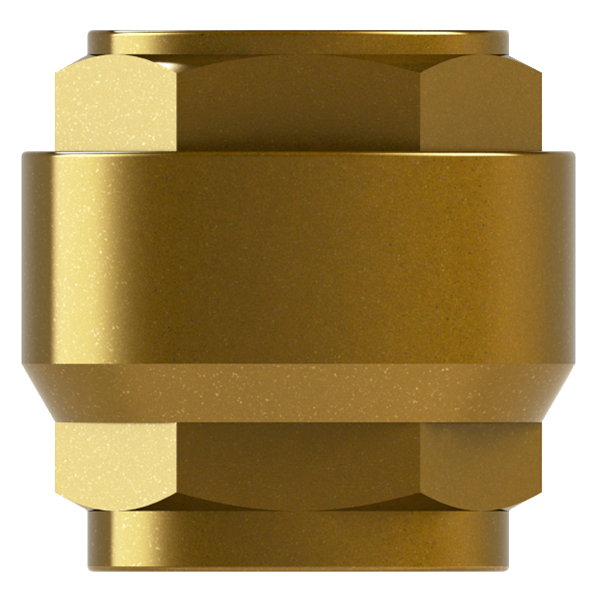

2″ FNPT x 2″ FNPT
Max Pressure: 400 PSI
Orifice Size: 1.93
Flow Coefficient cv: 60.68
Crack Pressures Available (PSI): 0.5

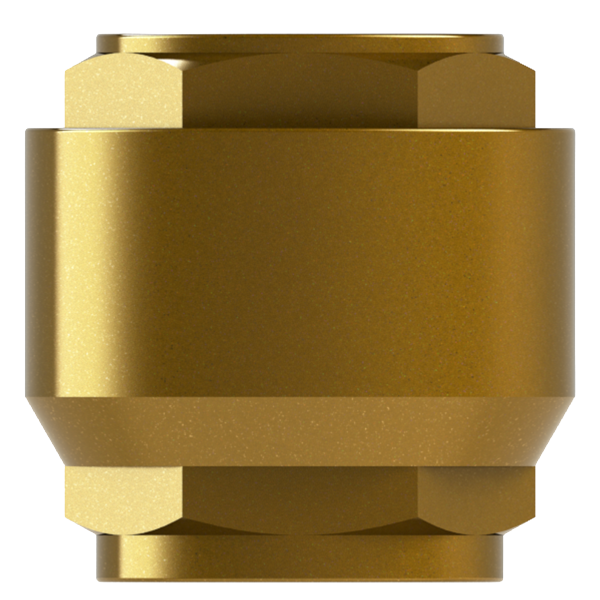

2 1/2″ FNPT x 2 1/2″ FNPT
Max Pressure: 175 PSI
Orifice Size: 2.5
Flow Coefficient cv: 98.40
Crack Pressures Available (PSI): 0.5
3″ FNPT x 3″ FNPT
Max Pressure: 175 PSI
Orifice Size: 3.1
Flow Coefficient cv: 158.01
Crack Pressures Available (PSI): 0.5
4″ FNPT x 4″ FNPT
Max Pressure: 175 PSI
Orifice Size: 3.9
Flow Coefficient cv: 225.46
Crack Pressures Available (PSI): 0.5
